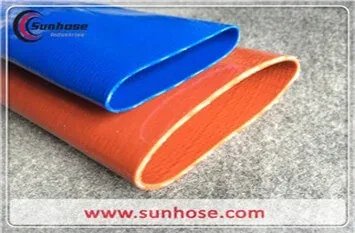

Agricultural irrigation flexible pump water PVC Yellow/Blue/Red Irrigation Lay Flat Hose/Pipe/Tube

Application:Light and heavy duty water discharge hose for use in agricultural, construction,mining and marine service applications.Limited oil and chemical application.
Construction:
Tube – PVC impregnation
Reinforcement – Woven high tensile synthetic yarn
Cover – PVC impregnation
Temperature Range:-10°C To +65°C (14°F To +150°F)
PVC Layflat Hose with Standard duty
Part No.
size
Inner Diameter
Working Pressure
Weight
Length
inch
mm
Psi
Bar
lb./ft.
kg/m
m/coil
SH4025
1″
0.984
Φ25
110-125
7 ~ 8
0.10
0.15
100
SH4032
1-1/4″
1.260
Φ32
90-110
6 ~ 7
0.11
0.17
100
SH4038
1-1/2″
1.496
Φ38
90-110
6 ~ 7
0.13
0.20
100
SH4050
2″
1.969
Φ50
75-90
5 ~ 6
0.19
0.28
100
SH4065
2-1/2″
2.559
Φ65
60-75
4 ~ 5
0.20
0.30
100
SH4075
3″
2.953
Φ75
60-75
4 ~ 5
0.31
0.46
100
SH4102
4″
4.016
Φ102
45-60
3 ~ 4
0.42
0.62
100
SH4125
5″
4.921
Φ125
45-60
3 ~ 4
0.50
0.75
100
SH4150
6″
5.906
Φ150
30-45
2 ~ 3
0.60
0.90
100
SH4200
8″
7.874
Φ200
15-30
1 ~ 2
1.07
1.60
100
PVC Layflat Hose With Heavy Duty
Part No.
size
Inner Diameter
Working Pressure
Weight
Length
inch
mm
Psi
Bar
lb./ft.
kg/m
m/coil
SH6025
1″
0.984
Φ25
145 -160
10 ~ 11
0.12
0.18
100
SH6032
1-1/4″
1.260
Φ32
145 -160
10 ~ 11
0.14
0.21
100
SH6038
1-1/2″
1.496
Φ38
145 -160
10 ~ 11
0.20
0.30
100
SH6050
2″
1.969
Φ50
145 -160
10 ~ 11
0.31
0.48
100
SH6065
2-1/2″
2.559
Φ65
145 -160
10 ~ 11
0.36
0.55
100
SH6075
3″
2.953
Φ75
145 -160
10 ~ 11
0.49
0.73
100
SH6102
4″
4.016
Φ102
145 -160
10 ~ 11
0.73
1.10
100
SH6125
5″
4.921
Φ125
60-75
4 ~ 5
0.67
1.00
100
SH6150
6″
5.906
Φ150
45-60
3 ~ 4
0.74
1.20
100
SH6200
8″
7.874
Φ200
30-45
2 ~ 3
1.21
1.60
100
