PVC Hose Tube Formula

Many PVC formulations, including foam board, ecological wood, GB and non-standard pipe fittings, heat shrinkable film, cables, etc., are welcome to pay attention, and everyone is welcome to share the good things to share. The following formula is for reference only.

First, the drainage pipe formula (high calcium)

1. pvc 100, heavy calcium 200, synthetic heavy calcium 50, composite lead salt stabilizer 5.6, stearic acid 1.8, paraffin 0.3, CPE10, titanium dioxide 3.6

2. PVC 100,300 mesh calcium 50, 80 mesh calcium 150, stearic acid 0.8, paraffin 0.55, compound lead salt stabilizer 4-5, CPE 4

3, PVC 100, heavy calcium 125, light calcium 125, stabilizer 6.2, paraffin 1.5, stearic acid 1.3, titanium dioxide 4, CPE 10, PE wax 0.3, brightener 0.03

4, PVC 100, heavy calcium 250, light calcium 50, stearic acid 2.4, paraffin 2.6, CPE 6, lead salt stabilizer 5.0

5, PVC 100, stearic acid 1.0, paraffin 0.8, lead salt stabilizer 4.6, heavy calcium 200

6. PVC 100, light calcium 25, lead salt stabilizer 3.5, monoglyceride 1.1, PE wax 0.3, stearic acid 0.2, processing aid ACR 1.5, paraffin 0.35, titanium dioxide 1.5, ultramarine 0.02, brightener 0.02

Second, the drain (low calcium)

1. PVC 100, lead and salt compound stabilizer 3.5, light calcium 5, PE wax 0.15, stearic acid 0.2, CPE 3-6, processing aid ACR 1.0-2.0, titanium dioxide 2-4, suitable whitening agent

2, PVC 100, light calcium 30, stabilizer 3.2, paraffin 0.6, stearic acid 0.4, titanium dioxide 1, CPE 5, brightener 0.02

Third, medical plastic pipe PVC formula

PVC Resin 50, Tetraoctyl Phthalic Acid 35.52, Epoxy Soybean Oil 1.89, Stearate 0.15, Ca/Za Complex 0.048, Glycerol 0.048, Lubricant 0.026

PVC Reinforced Hose tube formula

No.	Material name	Added amount
1	SG-5	50
2	CACO3	20
3	stabilizer	1.5
4	CPE	4
5	Stearic acid 1801	0.2
6	PE wax	0.2
7	Titanium Dioxide	0.5
8	OB-1	0.015

Pvc threading pipe:

PVC100, light calcium 50, lead salt stabilizer 3.6, CPE 4.8, paraffin 0.3, stearic acid 0.8, titanium dioxide 0.8

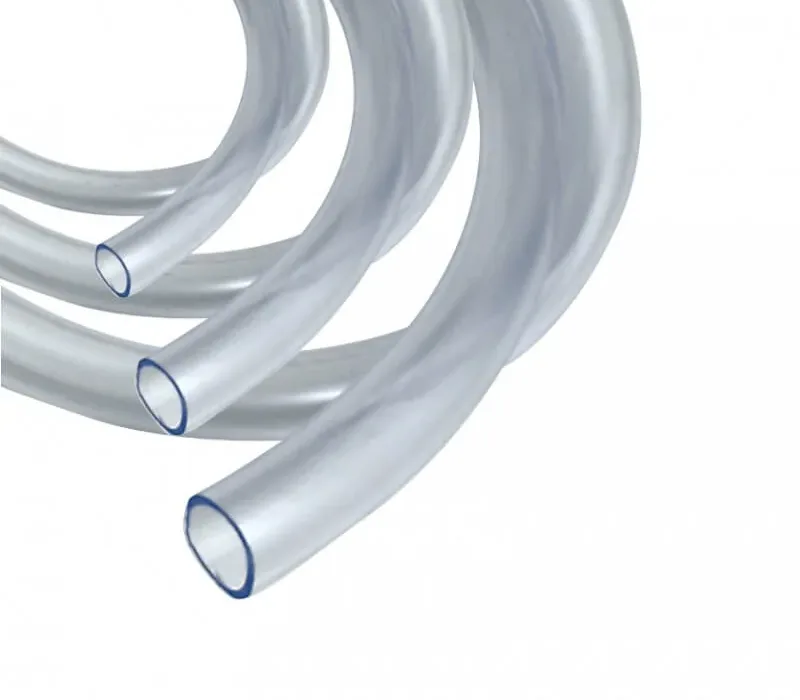

PVC transparent hose

1, non-toxic transparent hose (1)

PVC 100 DOP 45 ESBO 5 di-n-octyltin laurate 2 calcium-zinc compound stabilizer 1

2, transparent hose [2]

PVC 100 Epoxy Plasticizer 5 DOP 30 Organic Tin 1.5 DBP 10 Barium Stearate, Cadmium 1 DOA 5

3, transparent hose [2]

PVC 100 ESBO 5 DOP 45 Niobium-cadmium liquid stabilizer 2

4, transparent hose [2]

PVC 100 Zinc stearate 0.05 Cadmium stearate 1 DOP 28

Barium stearate 0.4 DBP 18 Lead stearate 0.1 Decolorizing agent

5, transparent hose [3]

PVC 100 MBS 5~10 DOP 30 C-102 3

DBP 15 HSt 0.3

6, non-toxic blood vessels [3]

PVC 100 ESBO 5 DOP 45 HSt 0.5 AlSt 0.5 ZnSt 0.5 Paraffin 0.2

7, transparent garden watering pipe [4]

PVC 100 DOP 40 ED3 10 Beryllium-cadmium liquid stabilizer 1

Chelating agent 0.3 stearic acid 0.3

8. Transparent tube for beverages [4]

PVC 100 DOP (or DOA) 50 Calcium-Zinc Liquid Stabilizer 3 Stearic Acid 0.5

PVC water supply pipe:

PVC100, compound lead salt stabilizer 2.27, paraffin 0.1, PE wax 0.13, stearic acid 0.3, monoglyceride 0.5, CPE3, ACR1.0, light calcium 40, titanium dioxide 1.0



PVC pipe fittings formula

PVC (SG-7) 100, Thermal Stabilizer 4.5, DOP 3.0, 1.5, Polyethylene Wax 0.6 Internal Lubricant 0.4, Lightweight (CaCO3) 25
