In the world of industrial hydraulics, reliability and performance are key. The SAE 100 R4 hydraulic hose with steel wire stands out. It’s strong, durable, and has great suction power. This makes it vital for many heavy-duty tasks.
The SAE 100 R4 hose has a helix steel wire core. This gives it top-notch pressure resistance and suction. It’s built to handle tough industrial settings and move fluids and gases well.

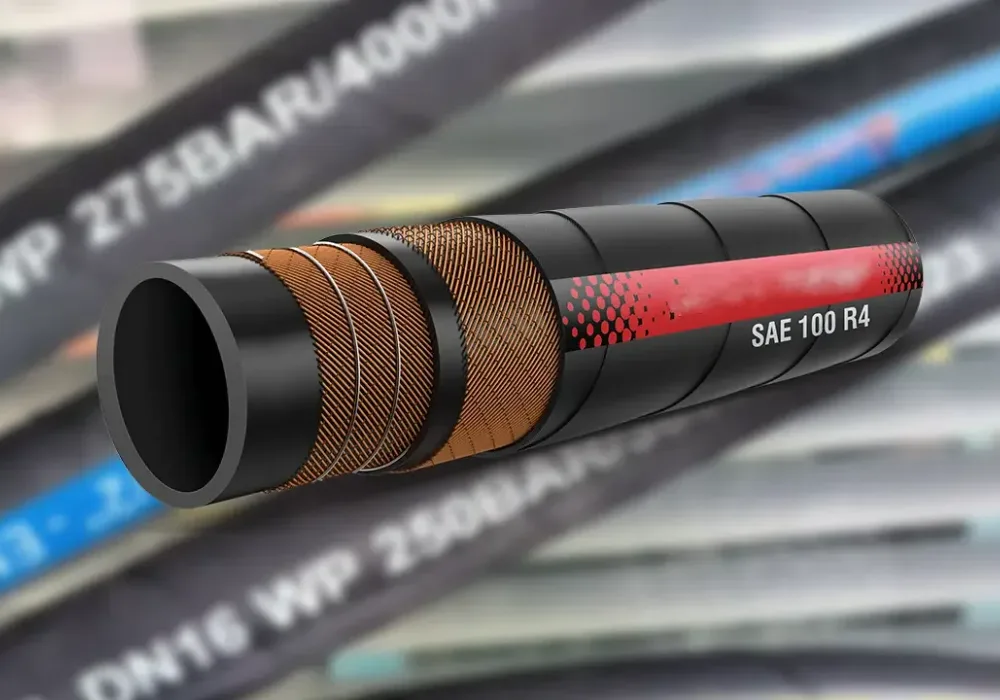

R4 Hydraulic hose
This hose meets the highest SAE 100 R4 standards. It’s safe, performs well, and fits many industrial needs. It’s perfect for heavy equipment, manufacturing, and oil and gas work. Professionals choose it for its reliability and quality.
Find out how the SAE 100 R4 hydraulic hose with steel wire can change your hydraulic systems. See how it can boost your industrial work.
Understanding SAE 100 R4 Standards and Specifications
Choosing the right hydraulic hose is key for your industrial needs. The SAE 100 R4 standard is a must-consider. It outlines the essential requirements for steel-reinforced and oil-resistant hoses, ensuring their reliability and safety.
Key Industry Compliance Requirements
The SAE 100 R4 standard has strict guidelines for hose makers. These include:
- Minimum burst and working pressure ratings
- Temperature range tolerance
- Chemical, oil, and environmental resistance
- Bend radius and flexibility specs
- Abrasion and wear resistance
- Safety and quality control
Material Composition and Design Parameters
The SAE 100 R4 focuses on materials and design. It calls for high-quality rubber and steel wire braiding. This combo boosts pressure resistance and durability.
Performance Ratings and Certifications
Hoses meeting SAE 100 R4 are tested for pressure, temperature, and chemical resistance. They often get ISO and NFPA certifications too. This shows their quality and safety commitment.
| Performance Metric | SAE 100 R4 Specification |
|---|---|
| Minimum Burst Pressure | 4x Working Pressure |
| Temperature Range | -40°F to 212°F (-40°C to 100°C) |
| Chemical Compatibility | Resistant to a wide range of oils, fuels, and other fluids |
Knowing the SAE 100 R4 standards helps professionals pick the right hose. Whether it’s for steel-reinforced, oil-resistant, or flexible suction hoses, it’s crucial for industrial needs.
R4 Hydraulic Hose with Helix Steel: Components and Construction
The SAE 100 R4 hydraulic hose is top-notch for heavy-duty industrial hydraulic hose needs. It’s known for its great performance and long life. Its design includes multiple layers for better pressure handling and safety in various low-pressure hydraulic hose and oil delivery hose settings.
The hose’s inner tube is made of strong materials like nitrile or EPDM. This inner layer ensures smooth flow of hydraulic fluids, making the hose efficient.
The hose’s core is the helical steel wire. This wire is wrapped in a spiral shape, making the hose strong yet flexible. It can handle high pressures and prevent damage. The helix steel is key to the hose’s strength and durability.
The outer cover is made of tough materials like polyurethane or rubber. It protects the hose from damage caused by the environment, chemicals, and wear. This adds to the hose’s lifespan and performance in tough heavy-duty hydraulic hose tasks.
| Hose Component | Material | Function |
|---|---|---|
| Inner Tube | Nitrile or EPDM | Provides a smooth, seamless flow path for hydraulic fluids |
| Helix Steel Reinforcement | High-strength steel wire | Delivers exceptional pressure resistance and burst protection |
| Outer Cover | Polyurethane or rubber | Offers protection against environmental factors and abrasion |
The R4 hydraulic hose combines advanced parts for a durable and versatile hose. It’s a solid choice for many oil delivery hose and industrial hydraulic hose uses.
Benefits of Steel Wire Reinforcement in Hydraulic Systems
The choice of hose material in hydraulic systems is key. The spiral steel hydraulic hose stands out, offering many benefits. It’s a top pick for heavy-duty and industrial uses. Let’s look at why this design is so good.
Enhanced Pressure Resistance
The durable hydraulic hose with spiral steel construction can handle high pressures. It’s reliable and performs well in tough environments. This makes it a go-to for applications needing strong hydraulic parts.
Improved Durability and Longevity
The oil-resistant suction hose with steel wire lasts longer than others. Its tough build fights off wear and tear. This means less need for replacements, saving money and effort.
Superior Vacuum Performance
The sae standard hydraulic hose with steel wire is great for suction and transfer. It ensures smooth fluid flow, avoiding air pockets. This keeps the system working well.
Steel wire reinforcement in hydraulic hoses makes them strong and efficient. It helps create hoses that last long and perform well in tough settings.
Applications in Industrial and Heavy Equipment
SAE 100 R4 hydraulic hoses are perfect for many industrial and heavy equipment needs. They are made to handle tough environments in construction, mining, and oil and gas. These hoses are great for moving petroleum, suction, and hydraulic fluids.
In construction, these hoses power the big machines like excavators and cranes. They can handle the hard work and vibrations of construction sites. This makes them reliable and durable.
In the oil and gas field, they help move dangerous liquids like crude oil. Their ability to handle chemicals and extreme temperatures is key. This makes them a top choice for these tough tasks.
| Industry | Application | Hose Type |
|---|---|---|
| Construction | Excavators, Loaders, Cranes | Hydraulic Fluid Hoses |
| Oil and Gas | Crude Oil and Fuel Transfer | Petroleum Transfer Hoses, Rubber Suction Hoses |
| Mining | Haul Trucks, Drilling Rigs | Abrasion-Resistant Hoses |
In mining, SAE 100 R4 hoses are great because they can handle rough conditions. They work well with haul trucks and drilling rigs. This means they last longer and need less upkeep.
“The versatility and durability of SAE 100 R4 hydraulic hoses make them an essential component in a wide range of industrial and heavy equipment applications, from construction and mining to oil and gas.”
Oil and Petroleum Transfer Capabilities
The SAE 100 R4 hydraulic hose is perfect for moving oil and petroleum. It’s made to handle many types of petroleum-based fluids. This includes oils, fuels, and solvents.
Temperature Range Tolerance
This hose can handle very cold and very hot temperatures. It works from -40°F (-40°C) to 250°F (121°C). This means it’s good for use in different weather conditions.
Chemical Compatibility Features
The oil hose with helix is also great because it doesn’t react with many chemicals. It can stand up to motor oils, hydraulic oils, diesel fuels, and gasoline. This makes the flexible oil transfer hose last longer and reduces the chance of leaks.
Flow Rate Optimization
The reinforced oil hose is made to move fluids quickly and smoothly. Its design and materials help fluids flow better. This means the hose can handle more fluid and work better.
Also, the anti-static hydraulic hose design helps prevent fires. It stops static electricity from causing sparks. This makes the SAE 100 R4 hose safe and useful for many industrial uses.
Maintenance and Installation Best Practices
To keep your r4 hydraulic hose or helix steel hose in top shape, follow some key steps. Proper installation and care are key. This way, your oil suction hose will last longer, and your sae 100 r4 system will stay strong.
Proper Installation Techniques
Getting your r4 hydraulic hose installed right is vital. First, check the hose and fittings for any damage. Make sure the hose fits the job and the fittings match up well. When you connect it, avoid kinks and bends to prevent damage.
Proactive Maintenance and Inspection
Regular checks and upkeep are crucial for your helix steel hose and oil suction hose. Look for signs of wear like cracks or leaks. Focus on areas that get a lot of use and keep the hose secure. Replace any damaged parts quickly to prevent bigger problems.
Storage and Handling
How you store and handle your sae 100 r4 hose also matters. Keep it in a clean, dry spot, away from sunlight and extreme temperatures. Don’t drag or drop the hose, as it can get damaged inside.
By sticking to these tips, your r4 hydraulic hose, helix steel hose, oil suction hose, and sae 100 r4 system will work well for a long time.
Comparing SAE 100 R4 to Other Hydraulic Hose Types
Choosing the right hydraulic hose is crucial for your industrial or heavy equipment needs. SAE 100 R4 hoses stand out against other options. This section will guide you in making a choice that fits your needs and budget.
Cost-Benefit Analysis
SAE 100 R4 hydraulic suction hoses might cost more upfront than some others. But, their steel-reinforced and oil-resistant design saves money in the long run. They last longer, meaning less need for repairs and replacements.
Performance Metrics Comparison
| Performance Metric | SAE 100 R4 | Alternative Hose Type |
|---|---|---|
| Pressure Resistance | Up to 4,000 psi | Up to 3,000 psi |
| Temperature Range | -40°F to 212°F | -20°F to 180°F |
| Vacuum Performance | Excellent | Good |
| Chemical Compatibility | Highly oil-resistant | Moderate oil-resistance |
Lifespan and Durability Factors
SAE 100 R4 hydraulic suction hoses have steel wire for extra protection. This makes them last longer than many other hoses. They are less likely to get damaged, which means your systems can run smoother and longer.
“The steel-reinforced construction of SAE 100 R4 hoses offers unparalleled strength and longevity, making them a reliable choice for even the most demanding industrial applications.”
Environmental Impact and Safety Considerations
Hydraulic hoses have a big impact on the environment and safety. SAE 100 R4 reinforced rubber hoses focus on being eco-friendly and safe. They are great for heavy equipment and industrial use.
These hoses are good at stopping leaks and spills. This is important in places where the environment is sensitive. The steel wire inside the reinforced rubber hose helps keep fluids like oils safe. This reduces the chance of harming the environment.
The materials in SAE 100 R4 oil delivery hose are made to be kind to the planet. The rubber and steel can be recycled. This helps reduce waste and supports a greener future for hydraulic systems.
- Eco-friendly material composition
- Reliable leak and spill prevention
- Suitability for environmentally sensitive applications
- Recyclable components for sustainable disposal
SAE 100 R4 heavy-duty hydraulic hose also makes workplaces safer. Its strong build and ability to handle pressure mean less chance of accidents. This keeps workers safe from injuries.
SAE 100 R4 hydraulic hoses show a dedication to being green and safe. They help the industry and the planet by being responsible and sustainable.
Conclusion
The SAE 100 R4 hydraulic hose with steel wire reinforcement is a top choice for today’s industries. It meets strict standards, is made of strong materials, and works well under pressure. This makes it key for safe and efficient fluid transfer.
This hose’s spiral steel design boosts its strength and lasts longer. It’s great for moving oil, petroleum, and other fluids. It also handles chemicals and temperatures well, keeping systems running smoothly and needing less upkeep.
As industries grow, they need better fluid handling solutions. The R4 hose fits the bill with its tough and oil-resistant build. It’s proven to improve system performance and safety, making it vital for modern hydraulic systems.
FAQ
What is SAE 100 R4 hydraulic hose with steel wire reinforcement?
SAE 100 R4 hydraulic hose is a reinforced rubber hose. It’s made for industrial use where suction, high pressure, and durability are key. The hose has a spiral steel wire inside that makes it last longer and work better.
How does the steel wire reinforcement benefit hydraulic systems?
The steel wire in SAE 100 R4 hoses offers many benefits for hydraulic systems:
- It can handle high pressures well.
- It makes the hose last longer and work better.
- It helps with suction, making fluid transfer reliable.
What are the typical applications for SAE 100 R4 hydraulic hoses?
SAE 100 R4 hoses are used in many industrial and heavy equipment settings. They’re found in:
- Construction machines.
- Agricultural gear.
- Mining and quarrying.
- Hydraulic fluid systems.
- Petroleum and chemical plants.
How do SAE 100 R4 hoses perform in oil and petroleum transfer applications?
SAE 100 R4 hoses are great for moving oil and petroleum. They handle a wide range of temperatures and are safe with many chemicals. They also move fluids well and prevent sparks.
What are the best practices for maintaining and installing SAE 100 R4 hydraulic hoses?
To keep SAE 100 R4 hoses working well, follow these tips:
- Install them right to avoid damage.
- Check them often for wear or damage.
- Replace them when they’re worn out.
- Follow the maker’s advice on maintenance and when to replace.
